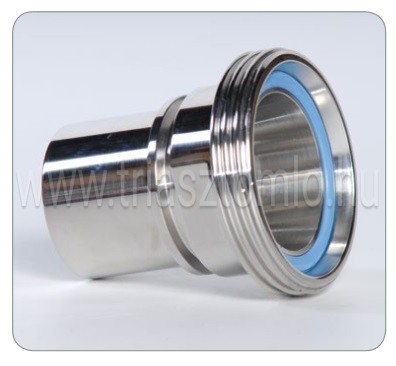

Download catalogue It's hygienic/dairy coupling with male thread and rubber sealing according to DIN 11581.
The blue rubber sealing is food quality, but it can be ordered with teflon sealing too.
hygenic coupling - dairy couling - rubber sealing - food quality coupling
The product is a permanent storage lots. Meantime, we hold the right of selling the stock in products.
| Hose inside ø (mm) |
DN | Thread | Article number |
Quote request for the entire size scale |
|---|---|---|---|---|
| 25 | 1” | Rd 52x1/6 | 254022 | Request a quote |
| 32 | 1.1/4” | Rd 58x1/6 | 254035 | Request a quote |
| 38 | 1.1/2” | Rd 65x1/6 | 254023 | Request a quote |
| 51 | 2” | Rd 78x1/6 | 254784 | Request a quote |
| 63 | 2.1/2” | Rd 95x1/6 | 254013 | Request a quote |
| 76 | 3” | Rd 110x1/4 | 254014 | Request a quote |
| 102 | 4” | Rd 130x1/4 | 254036 | Request a quote |
Relating products
Technical specifications:
The sealing is suitable for a DIN 11851 2011-4 male coupling.
D profile sealing
Perbunan: blue coloured, the NBR rubber quality (65-80 Shore A hardness) is according to the FDA
Teflon: white coloured hard teflon
teflon sealing - rubber sealing - NBR sealing - perbunan sealing - food quality sealing - O ring
Forward to the item's pagePerbunan
| DN (mm) | Design | Article number |
Quote request for the entire size scale |
|---|---|---|---|
| 15 | blue NBR | 254018 | Request a quote |
| 20 | blue NBR | 254800 | Request a quote |
| 25 | blue NBR | 254059 | Request a quote |
| 32 | blue NBR | 254060 | Request a quote |
| 40 | blue NBR | 254061 | Request a quote |
| 50 | blue NBR | 254687 | Request a quote |
| 65 | blue NBR | 254062 | Request a quote |
| 80 | blue NBR | 254788 | Request a quote |
| 100 | blue NBR | 254096 | Request a quote |
| 125 | blue NBR | 254776 | Request a quote |
PTFE
| DN (mm) | Anyaga | Cikkszám |
Quote request for the entire size scale |
|---|---|---|---|
| 20 | PTFE | 254097 | Request a quote |
| 25 | PTFE | 254027 | Request a quote |
| 32 | PTFE | 254001 | Request a quote |
| 40 | PTFE | 254004 | Request a quote |
| 50 | PTFE | 254691 | Request a quote |
| 65 | PTFE | 254028 | Request a quote |
| 80 | PTFE | 254781 | Request a quote |
| 100 | PTFE | 254173 | Request a quote |
Technical specifications:
The multipurpose food quality suction, and discharge hose is suitable for animal and vegetable fats and oils transport, and extremely persistent against alcohol, up to 96% alcohol content, for example wine, distillate, grape must, fruit juices etc.
It is phthalate and animal derivatives free. The hose is flexible, even on low temperature. It has a great resistance against chemical medium, which occurs during cleaning.
FDA hose - suction hose - discharge hose - food quality hose - rubber hose
Forward to the item's page| ID (mm) | Wall (mm) | OD (mm) | R (mm) | kg/m | article Nr. |
Quote request for the entire size scale |
|---|---|---|---|---|---|---|
| 19 | 6 | 31 | 80 | 0,57 | 224043 | Request a quote |
| 25 | 6 | 37 | 100 | 0,7 | 224044 | Request a quote |
| 32 | 6 | 44 | 140 | 0,85 | 224045 | Request a quote |
| 38 | 7 | 52 | 200 | 1,21 | 224046 | Request a quote |
| 40 | 7 | 54 | 230 | 132 | 102753 | Request a quote |
| 50 | 7,5 | 65 | 250 | 1,46 | 224047 | Request a quote |
| 63,5 | 8 | 80 | 300 | 2,03 | 224048 | Request a quote |
| 75 | 8,5 | 92 | 400 | 2,78 | 224049 | Request a quote |
| 102 | 10 | 122 | 600 | 4,29 | 224050 | Request a quote |
